contours: three new profiles
Now with three new profiles, including winners from our My Contours DESIGN Competition, Contours Profiled Wall Base System® offers the look of wood base with the enhanced properties of resilient base. Contours resists chipping, absorbing moisture and splintering while eliminating the costly tasks of nailing, filling and finishing traditional wood trim.
contours profiled wall base system
• Durable TPR rubber compound contains bio-based phthalate free plasticizer, from a rapidly renewable resource.
• Made in the U.S.A. and meets FloorScore®, NSF332 Platinum and CHPS criteria.
• Produced in 40′ cartons. Available in 17 profiles with heights ranging from 3″ to 7-3/4″, a quarter round and corner options.
• Satin finish provides the look of custom-crafted woodwork, eliminating the nailing, sanding and priming associated with wood.
• Natural flexibility conceals irregularities in floors, walls and corners (e.g., seam of floor and wall, bowing walls, etc.), and allows for installing around architectural curves.
• All colors available at a Single Price Point. Other Roppe colors and custom colors available, minimums apply.
technical documents
Roppe Contours TPR Wall Base – Technical Data
Roppe Contours Wall Base – CSI Spec
Roppe Wall Base – Installation
Roppe Wall Base & Accessories – Care & Maintenance
Roppe Contours TPR Wall Base – 00 Simplicity – Submittal
Roppe Contours TPR Wall Base – 05 Simplicity Bold – Submittal
Roppe Contours TPR Wall Base – 10 Serenity – Submittal
Roppe Contours TPR Wall Base – 45 Novel 4.5 – Submittal
Roppe Contours TPR Wall Base – 45 Novel 7.75 – Submittal
Roppe Contours TPR Wall Base – 55 Nobility – Submittal
Roppe Contours TPR Wall Base – 60 Candid 3 – Submittal
Roppe Contours TPR Wall Base – 60 Candid 4.25 – Submittal
Roppe Contours TPR Wall Base – 65 Vertical 3 – Submittal
Roppe Contours TPR Wall Base – 65 Vertical 4.625 – Submittal
Roppe Contours TPR Wall Base – 65 Vertical 6 – Submittal
Roppe Contours TPR Wall Base – 70 Valiant – Submittal
Roppe Contours TPR Wall Base – 80 Divine – Submittal
Roppe Contours TPR Wall Base – 85 Fashion 4.25 – Submittal
Roppe Contours TPR Wall Base – 85 Fashion 6.25 – Submittal
Roppe Contours TPR Wall Base – 90 Intrigue 4 – Submittal
Roppe Contours TPR Wall Base – 90 Intrigue 5.5 – Submittal
Roppe Contours TPR Wall Base – 350 Quarter Round – Submittal
Click here to view our full line of excelsior maintenance products.

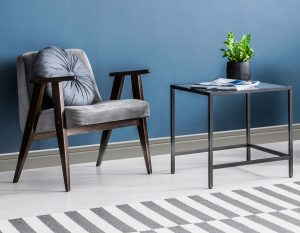

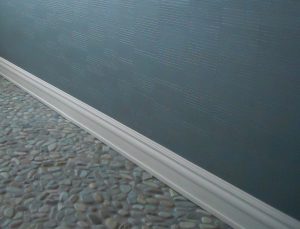

contours profiled wall base system photo gallery
contours profiled wall base system dimensions
contours profiled wall base system colors
Find more design resources for Roppe Flooring at:
contours profiled wall base system images

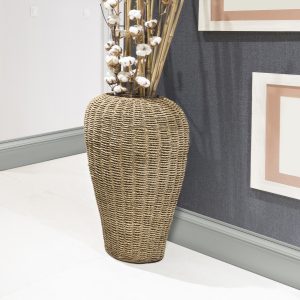

nobility
PV5055
profile height 5-1/2”
packaged 5-8’ pcs./ctn.
40 linear ft./ctn.
3/8” thickness

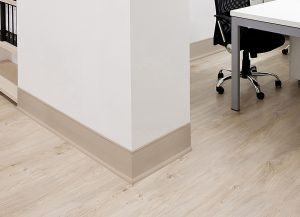

intrigue
PV5090
profile height 5-1/2”
packaged 8-8’ pcs./ctn.
64 linear ft./ctn.
3/8” thickness
intrigue
PV4090
profile height
4”
packaged 8-8’ pcs./ctn.
64 linear ft./ctn.
3/8” thickness
serenity
PV4010
profile height
4”
packaged 14-8’ pcs./ctn.
112 linear ft./ctn.
1/4” thickness

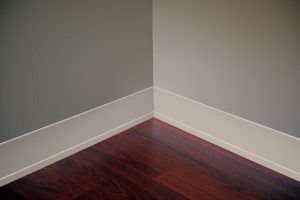

simplicity
PV4000
profile height
4”
packaged 15-8’ pcs./ctn.
120 linear ft./ctn..
1/4” thickness
simplicity bold
PV4005
profile height
4-1/2”
packaged 5-8’ pcs./ctn.
40 linear ft./ctn.
1/2” thickness
candid
PV4060
profile height 4-1/4”
packaged 6-8’ pcs./ctn.
48 linear ft./ctn.
3/8” thickness
candid
PV3060
profile height 3”
packaged 5-8’ pcs./ctn.
40 linear ft./ctn.
3/8” thickness

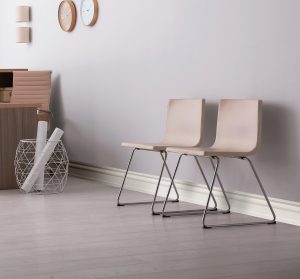

novel
PV7045
profile height 7-3/4”
packaged 6-8’ pcs./ctn.
48 linear ft./ctn.
1/4” thickness
novel
PV4045
profile height 4-1/2”
packaged 6-8’ pcs./ctn.
48 linear ft./ctn.
3/8” thickness
fashion
PV6085
profile height 6-1/4”
packaged 5-8’ pcs./ctn.
40 linear ft./ctn.
1/4” thickness
fashion
PV4085
profile height 4-1/4”
packaged 8-8’ pcs./ctn.
64 linear ft./ctn.
1/4” thickness
vertical
PV6065
profile height
6”
packaged 4-8’ pcs./ctn.
32 linear ft./ctn.
3/8” thickness
vertical
PV4065
profile height 4-5/8”
packaged 5-8’ pcs./ctn.
40 linear ft./ctn.
3/8” thickness
vertical
PV3065
profile height 3”
packaged 5-8’ pcs./ctn.
40 linear ft./ctn.
3/8” thickness
divine
PV4080
profile height
4-1/2”
packaged 5-8’ pcs./ctn.
40 linear ft./ctn.
1/2” thickness

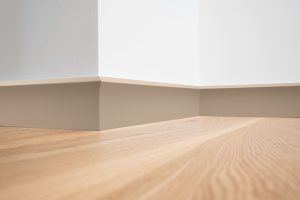

valiant
PV4070
profile height
4-1/2”
packaged 5-8’ pcs./ctn.
40 linear ft./ctn.
1/2” thickness
My Contours DESIGN Competition Winning Entries
“The human body is one of nature’s most complex, but at the same time most beautifully composed creations. Shapes derived from these organic forms generate an immediate emotional response.
To create the pair of baseboards, many different silhouettes of human body shapes were united into an idealized and simplified curve – one standing for the female and one for the male.
Divine and Valiant add softer free-form shapes to the mix, like they are not existing in the market for baseboards so far.”
– Cornelius Comanns, Winner of the Roppe My Contours DESIGN Competition
health product declaration – TPR wall base
Roppe® Thermoplastic Rubber (TPR) Wall Base products encompass 700 Series™ Wall Base and Contours™ Profiled Wall Base system. Composed of a resilient rubber-vinyl blend, Roppe TPR Wall Base products provide good flexibility while maintaining dimensional stability. Precise gauging and uniform height conceal floor and wall irregularities. Roppe TPR Wall Base is formulated with Bioplasticizer and no post-consumer recycled content is used, eliminating the possibility of contamination by ortho-phthalates. These products are manufactured without the use of toxic heavy metals such as Lead, Cadmium, Chromium VI, or Arsenic and the PVC resin used is manufactured without using Mercury cell and Asbestos membranes. Roppe’s TPR Wall Base formulation is screened according to current authoritative lists and does not contain any substances of very high concern (SVHC) on the REACH candidate list or substances restricted under REACH. Click here for a PDF of the complete declaration.

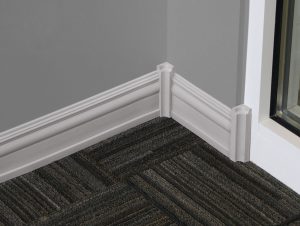

corner blocks and micro corners
The dreaded corner – it’s often viewed as the most difficult, costly and time-intensive element of any wall base installation. To resolve this issue, we’ve developed rubber corner blocks. These 100% PVC free, vulcanized and extruded corner blocks alleviate costly hand-scribing, wasted time and extra skilled craftsmen from the corner-forming process. These rubber corners also add durability because they are less likely to get damaged or detached during everyday use and maintenance of the interior space.
corner blocks
• PVC free and phthalate free.
• Made in the U.S.A. and meets FloorScore®, NSF 332 Gold and CHPS criteria.
• Available in 2 profiles – Original (3/8″) and Micro (1/4″) corners. Recommended height is 1/4″ taller than your intended base profile.
• Alleviate costly hand-scribing, wasted time and extra skilled craftsmen from the corner-forming process.
• Underlap wings attach to the wall adding durability to the installation so they are less likely to get damaged or detached during everyday use and maintenance of the interior space.
• All colors are inherent throughout and available at a Single Price Point.
satin finish
Contours’ satin finish provides the look of custom-crafted woodwork, eliminating the nailing, sanding and priming associated with wood. Its natural flexibility conceals irregularities in floors, walls and corners (e.g., seam of floor and wall, bowing walls, etc.), and allows for installing around architectural curves.
